Compression Transducer Load Cell Weighing System For Hopper Scale Transducer

Features :

• Model:F2819
• Tension and compression load cell
• High comprehensive precision, high stability
• Easy side mounting
• Made of aluminum alloy or alloy steel
• Capacity:2.2lbs~500lbs

Description:

The F2819 Precision Load Cell, also called Belt Buckle Load Cell, has an impressive lightweight design and an easy side mounting feature. These make it ideal for OEM applications. The F2819 Precision Load Cell is used in compression and tension, making it ideal for areas with limited space.

F2819 High Precision Load Cell can be supplied in aluminum alloy (2.2~100lbs) or alloy steel (200~500lbs). This load cell is highly customizable with a range of standard sizes for immediate availability as well.

The cable of F2819 is AWG28#.

Applications:

Mainly used for pull and push dynamometer, hopper scales and industrial measuring systems.

Technical parameters:

Size and capacity:

Load direction:

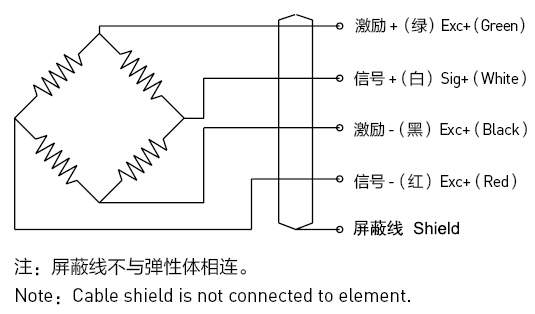

Schematic Wiring Diagram :

Application show:

tecsis (Shenzhen) Sensors Co., Ltd., which was established in March 2013, is a wholly foreign owned subsidiary of tecsis GmbH, Germany. tecsis has a history of more than 90 years in measurement industries. As a member of the tecsis group, the Shenzhen branch is specialized in the production of high accurate load cells and force sensors . Our products are applied in a wide range of applications, such as weighing control, process control, chemical industry, textile machine, food industry, medical equipment and industrial measurement.

The ISO certified factory is located in Shenzhen-Longgang and is equipped with 3000 sqm factory and 500 sqm office area. By using advanced production equipment a monthly production capacity of 50,000 pcs force sensors is available. Our products fulfill CE/RohS standard and are strictly produced to German quality standards. The engineering department uses up-to-date technologies to ensure the products fit the customers’ application. Offering customized products and providing excellent service made us a leader in the industry.
