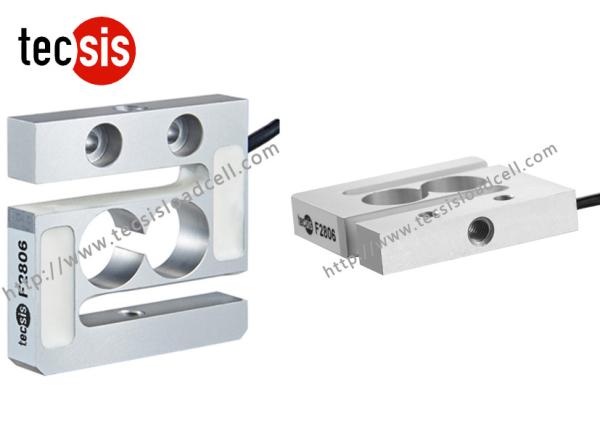

High Precision Impact S - Beam Crane Scale Load Cell Strain Gauge
100kg
Features :
- Model:F2806
- Tension and compression load cell
- High comprehensive precision, high stability
- Simple structure, easy to install
- Small size, easy to use
- Made of Aluminum alloy or Alloy steel
- Capacity:1kg~200kg
Description:
F2806 has good output symmetry, compact structure, simple to
install, because of its internal and external features, it can
support compression and tension, and be mainly used for the tensile
testing, for example, the testing of force gauge, this is a best
choice in tensile testing machine,
It has full range of capacities (the minimum capacity is 1kg, the
maximum is 200kg), so it is available for small weighing device,
for 1~30kg, it is made of the Aluminum material, for 50~200kg, it
is made of alloy steel. It has many limiting conditions on
environment, so it is applied for dry and no corrosion environment.
Applications:
S-type designing can be installed easily, which be available for
crane scales, electronic mechanic Scales, hopper and tank weighing,
packing scales, quantitative feeding machine, filling machine,
universal material testing machine and other electronic weighing
devices.
Technical parameters:
Specifications | Technique |
Rated output | 2.0±10%mV/V |
Zero balance | ±2% F.S. |
Non-linearity | 0.03% F.S. |
Hysteresis | 0.03% F.S. |
Repeatability | 0.02% F.S. |
Creep (30min) | 0.03% F.S. |
Temp. effect on output | 0.025% F.S. / 10ºC |
Temp. effect on zero | 0.025% F.S. / 10ºC |
Input impedance | 410±10Ω 385±10Ω (Alloy steel) |
Output impedance | 350±5Ω |
Insulation | ≥5000MΩ/ 100VDC |
Recommended excitation | 5V |
Maximum excitation | 15V |
Compensated temp. range | - 10~60ºC |
Operation temp. range | - 20~80ºC |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Cable size | Ø3×3000 mm
AWG28# (Option) |
Protection class | IP65 |
Cable color code | Input: Red(+) Black(-); Output: Green(+) White(-); |

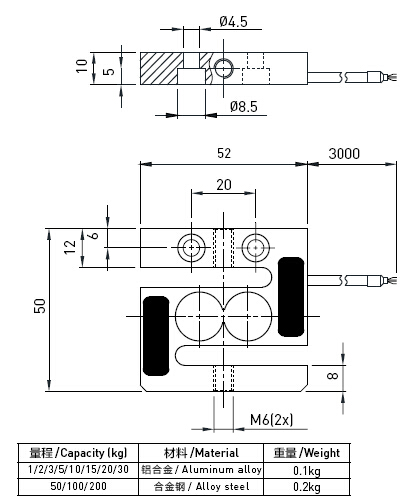

Size and capacity:
Load Direction:
Schematic Wiring Diagram :
