Compression Type High Precision Load Cell For Electronic Weighing
Features :
- Model:F2807
- Tension and compression load cell
- High comprehensive precision, high stability
- Simple structure, easy to install
- Small size, easy to use
- Made of Aluminum alloy or Alloy steel
- Capacity:1kg~50kg
Description:
Measure tension and compression force.
Compact structure, simple to install.
It comes complete 3.0m cable.
Because of its internal and external features, it can support
compression and tension, and be mainly used for the tensile
testing, for example, the testing of force gauge, this is a best
choice in tensile testing machine,
It is made of aluminum alloy, but according to your application,
you can choose alloy steel.
The protection class is IP65. It has many limited conditions on
environment, so it is applied for dry and no corrosion environment.
The safe over is 120%, but according to your application, you can
choose Alloy steel.
Mainly used for handheld push-pull gauge, key, switch elasticity
test of computers, mobiles, crane scale and other force measurement
use.
Applications:
F2807 S-type mainly used for handheld push-pull gauge, key, switch elasticity
test of computers, mobiles, crane scale and other force measurement
use.
Technical parameters:
Specifications | Technique |
Rated output | 2.0±10%mV/V |
Zero balance | ±2% F.S. |
Non-linearity | 0.05% F.S. |
Hysteresis | 0.05% F.S. |
Repeatability | 0.05% F.S. |
Creep (30min) | 0.05% F.S. |
Temp. effect on output | 0.025% F.S. / 10ºC |
Temp. effect on zero | 0.025% F.S. / 10ºC |
Input impedance | 410±10Ω 385±10Ω (Alloy steel) |
Output impedance | 350±5Ω |
Insulation | ≥5000MΩ/ 100VDC |
Recommended excitation | 5V |
Maximum excitation | 15V |
Compensated temp. range | - 10~60ºC |
Operation temp. range | - 20~80ºC |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Cable size | Ø3×3000 mm |
Protection class | IP65 |
Cable color code | Input: Red(+) Black(-); Output: Green(+) White(-); |

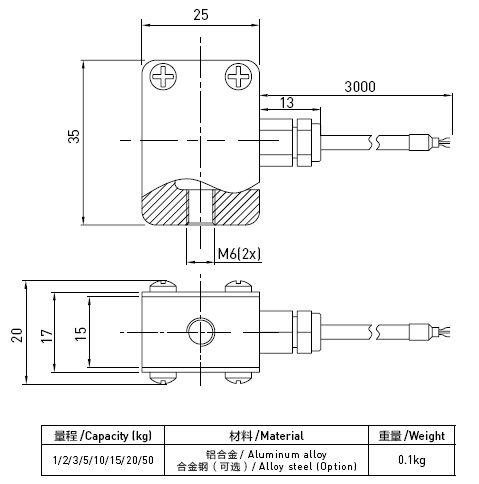

Size and capacity:
Load direction:
Schematic Wiring Diagram :

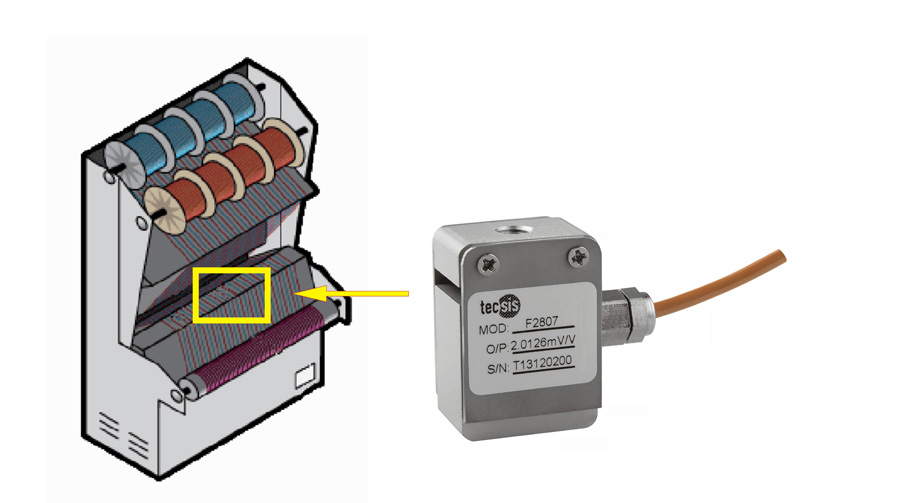

Product details:
