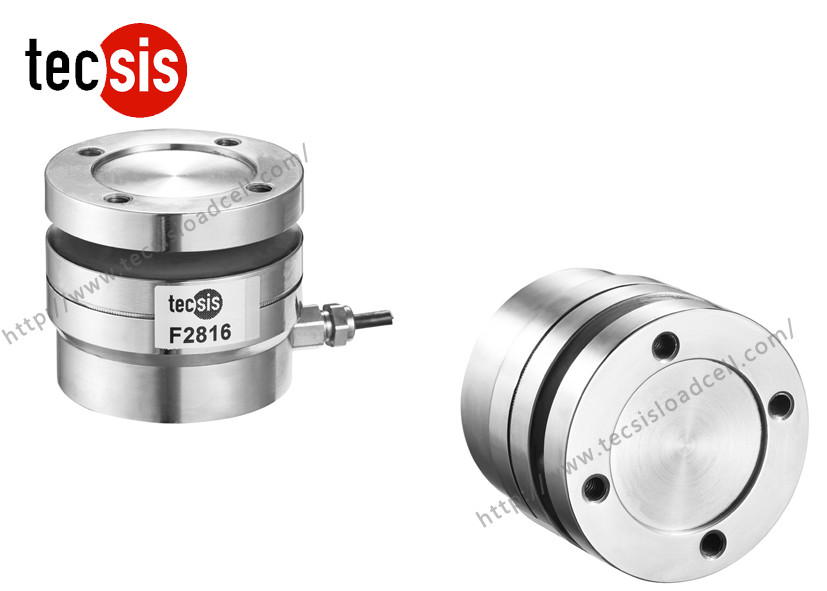

Stainless Steel Force Sensor Compression And Tension Load Cell Transducer

Features :

• Model:F2816
• Simple structure, both sizes threads, easy to install
• Large capacity
• Made of stainless steel
• Tension and compression load cell
• High comprehensive precision, high stability
• Capacity:0.5KN~100KN

Description:

F2816 Force transducer is available in the capacities 0.5KN to 100KN.

There are 4 holes on both sides of the load cell, this makes it easy to integrated into mechanical shaft.

The protection class is IP67, this makes it easy to used in kinds of harsh envirenment.

It comes with complete 2.0m cable.

It has a big force area, so the force will be more accurate.

Mainly used for compression force measuring systems.

Applications:

Mainly used for compression force measuring systems.

Technical parameters:

Size and capacity:

Schematic Wiring Diagram :
