High Accuracy Force Sensor Load Cell Sensor For Hopper Scale

Features :

• Model:F2802
• Tension and compression load cell
• High comprehensive precision, high stability
• Simple structure, easy to install
• Made of alloy steel or stainless steel
• Good overload control
• Capacity:50kg~5t

Descriptions:

F2802 is a S-beam load cell, it also called S-type load cell.

It can measure tension and compression force.

As it is made of alloy steel, you also can choose stainless steel, so the capacity is 50kg to 5t.

As the capacity are not all the same, the appearance are different, as you can see that the picture shows.

It has a high accuracy.

There is a hole on both sides, this makes it easy to install.

It comes complete 3.0m cable and the cable out let is pressing nut.

This kind can be used single, and be used two or more sets together, but they must be connected with Rod Ends Spherical Plain bearings or connecting rod, which is beneficial for weighing device in the way of hoisting equipment.

S-beam designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.

Applicatiosn:

S-beam designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.

Technical parameters:

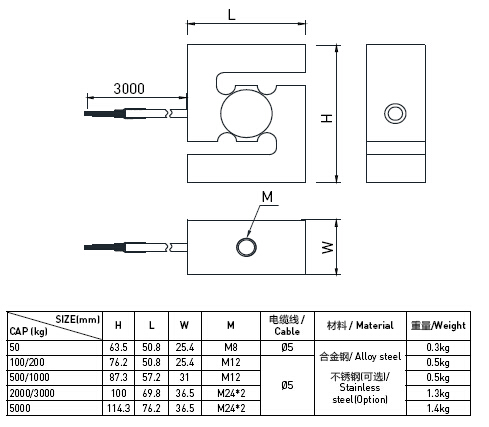

Size and capacity:

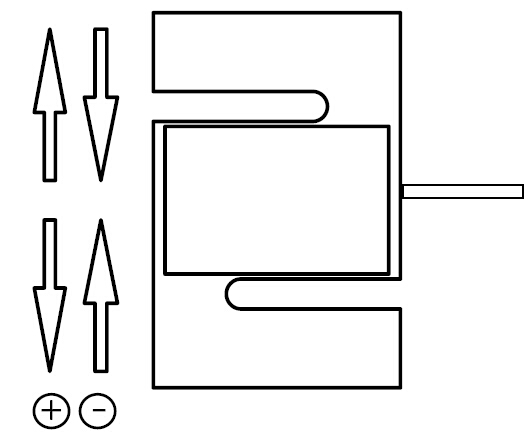

Load Direction:

Schematic Wiring Diagram :

Product details:
