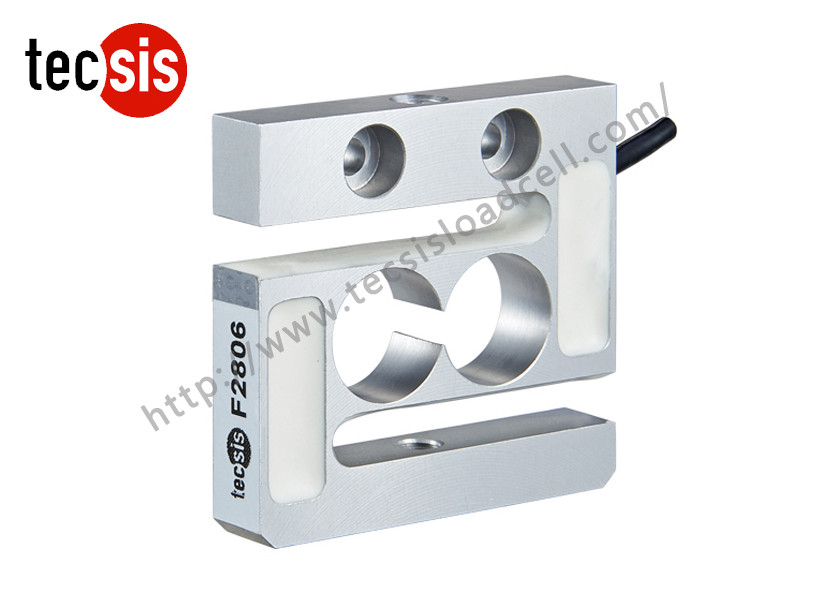

Aluminum Tension And Compression Load Cell s-Type With High Capacity 1kg To 200kg

Features :

• Model:F2806
• Small size, easy to use
• Made of Aluminum alloy or Alloy steel
• Capacity:1kg~200kg
• Tension and compression load cell
• High comprehensive precision, high stability
• Simple structure, easy to install

Description:

F2806 has good output symmetry, compact structure, simple to install.

High accuracy and high stability.

It comes complet 3.0m cable and you can choose AWG28#.

Measure tension and compression force.

Because of its internal and external features, it can support compression and tension, and be mainly used for the tensile testing, for example, the testing of force gauge, this is a best choice in tensile testing machine,

It has full range of capacities (the minimum capacity is 1kg, the maximum is 200kg), so it is available for small weighing device, for 1~30kg, it is made of the Aluminum material, for 50~200kg, it is made of alloy steel. It has many limiting conditions on environment, so it is applied for dry and no corrosion environment.

Applications:

S-type designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.

Technical parameters:

Size and capacity:

Load Direction:

Schematic Wiring Diagram :

Product details:
