Electronic Truck Scale 100kg Stainless Steel Load Cell Compression
Type
Features :
- Model:F1811
- Samll deflection
- Low profile
- Simple structure, easy to install
- Made of stainless steel
- Diametion: 82mm~165mm
- IP67
Description:

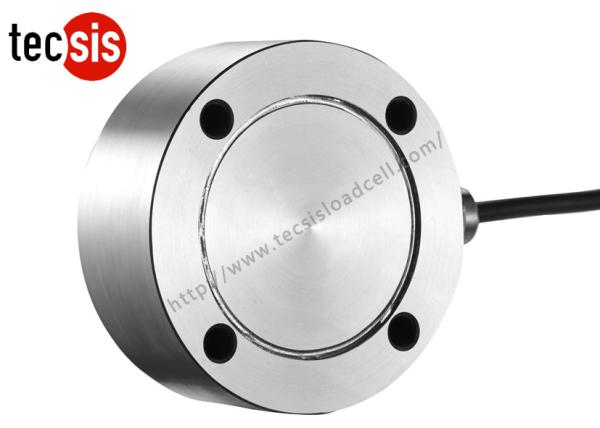

F1811 is a kind of Low Profile Disk Load Cell, it belongs to disk
style design, the dimension is 82mm~165mm, a little big, so it has
a bit weight, the model F1811 type is designed for low profile
tension service, spherical designing.
It is made of Stainless steel, fully welded seal with stainless
steel cover, and the degree of protection reaches to IP67, which
has the function of waterproof and moisture-proof, and because of
its stainless steel material, it is available for the corrosion
environment.
F1811 load cell is available in the capacities 0.25t to 100t, its
structure is very compact, easy mounting, its compact size makes
the load cell ideal for a wide range of applications including
testing or weighing systems.
F1811 load cell can be used single or more sets together, single
load cell can be matched with weighing indicator, converting what
you want to, because the load cell itself output is mill volt(MV),
it has to need an amplifier switch voltage or current.
applications:
Mainly used for electronic truck scale, ground scale, tank and various
applications such as pressing
machine, bearing assembly machine, axle wheel identifying.
Technical parameters:
Specifications | Technique |
Rated output | 1.5±10%mV/V |
Zero balance | ±2% F.S. |
Non-linearity | 0.1% F.S. |
Hysteresis | 0.1% F.S. |
Repeatability | 0.1% F.S. |
Creep (30min) | 0.1% F.S. |
Temp. effect on output | 0.05% F.S. / 10ºC |
Temp. effect on zero | 0.05% F.S. / 10ºC |
Input impedance | 750±10Ω |
Output impedance | 700±5Ω |
Insulation | ≥5000MΩ/ 100VDC |
Recommended excitation | 10V |
Maximum excitation | 15V |
Compensated temp. range | - 10~60ºC |
Operation temp. range | - 20~80ºC |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Cable size | Ø5×5000 mm |
Protection class | IP67 |
Cable color code | Input: Red(+) Black(-); Output: Green(+) White(-); |
