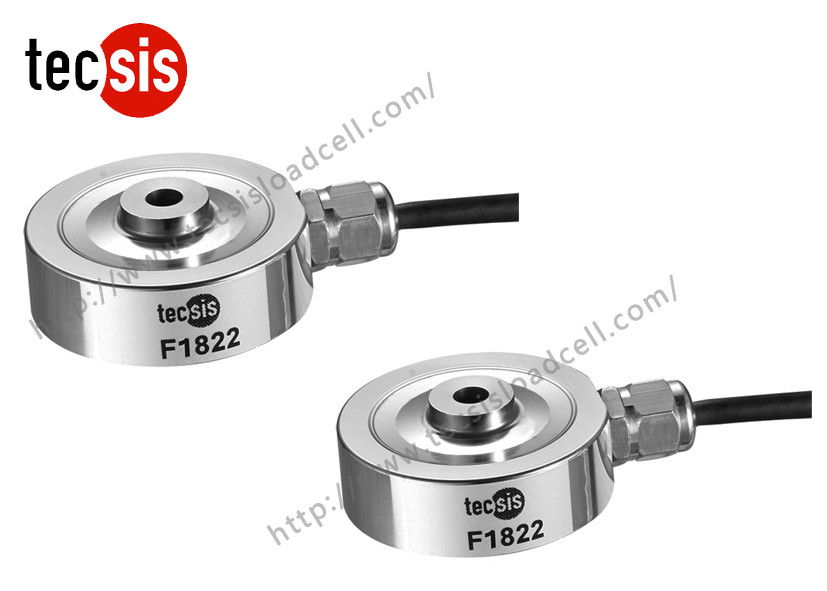

High Capacity Thru Hole Compression Load Cell Small With Simple Structure

Features :

• Model:F1822
• Capacity: 0.5KN~25KN
• Simple structure, easy to install
• High comprehensive precision, high stability
• Made of stainless steel
• Small deflection
• Delicate structure, Low profile
• Compression load cell

Description:

F1822 is designed for low profile compression service.

There is a hole in the middle of the compression load cell, this makes it easy to install.

lts compact size makes the cell ideal for a wide range of applications including testing & weighing systems , R&D and other applications .

lts capacities range from 0.5KN to 25KN and it comes complete with 3m of load cell cable.

Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications. Compact size with low profile.

The protection class is IP 66.

Application:

F1822 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Widely used for industrial measurement and control, R&D and other applications.

Technical parameters:

Size and capacity:

Load direction:

Schematic Wiring Diagram :

Product details:
