High Precision Strain Gauge Load Cell Compression Type For Weighing
Scale
Features :
- Model:F1819
- Capacity: 50N~120KN
- Simple structure, easy to install
- High Precision, high stability
- Small deflection
- Delicate structure, Low profile
- Made of stainless steel
- Compression load cell
- Button type load cell
Description:
There are three holes in the background of the F1819 load cell,
this makes it easy to install.
F1819 miniature type is designed for low profile compression
service. lts compact size makes the cell ideal for a wide range of
applications including testing & weighing systems , R&D and other applications .
lts capacities range from 50N to 120KN and it comes complete with
1.5m of load cell cable.
Stainless steel construction. Fully welded seal with stainless
steel cover for hostile environment applications.
Compact size with low profile.
You can choose the cable outlet is spring as the picture show.
The apperance is customizable.
Application:
F1819 is suitable for a wide range of applications including
testing or weighing systems, and it can be put into the device, in
order to monitor the force. Measure the force in the limited space. Widely used for industrial measurement and control, R&D and
other applications.
Technical parameters:
Specifications | Technique |
Rated output | 1.5±10%mV/V |
Zero balance | ±2% F.S. |
Non-linearity | 0.5% F.S. |
Hysteresis | 0.5% F.S. |
Repeatability | 0.5% F.S. |
Creep (30min) | 0.1% F.S. |
Temp. effect on output | 0.05% F.S. / 10ºC |
Temp. effect on zero | 0.05% F.S. / 10ºC |
Input impedance | 385±10Ω |
Output impedance | 350±5Ω |
Insulation | ≥5000MΩ/ 100VDC |
Recommended excitation | 5~10V |
Maximum excitation | 15V |
Compensated temp. range | - 10~60ºC |
Operation temp. range | - 20~80ºC |
Safe overload | 120% F.S. |
Ultimate overload | 200% F.S. |
Cable size | Ø3×3000 mm |
Protection class | IP66 |
Cable color code | Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:

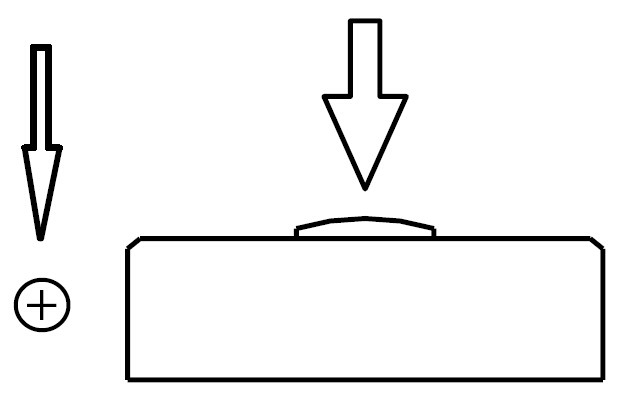

Load Direction:
Schematic Wiring Diagram :
