Single Strain Gauge Tension Load Cell Compression Type With
Weighing Indicator
Features :
- Model:F2813
- Large capacity
- Made of stainless steel
- Capacity:150kg~500kg
- Tension and compression load cell
- High comprehensive precision, high stability
- Simple structure, both sides threads, easy to install
- Diameter:34mm
Description:
F2813 Force transducer is available in the capacities 150kg to
500kg, compare to F2811, it can measure large capacity.
There are M8 threads on both sides of the load cell, this makes it
easy to integrated into mechanical shaft.
F2813 Force transducer can be used single, it can be used for the
small space or limited environment (if the output is rationalized).
single load cell can be matched with weighing indicator, converting
what you want to.
It is made of stainless steel, this makes it has good stability.
The protection class is IP67, it can be used in harsh environments.
The diameter is 34mm and the height is 51.5mm.
It comes with complete 1.5m cable.
As a force transducer, it is suitable for a wide range of
applications including testing or weighing systems, for example,
the weighing systems of material testing machines and Dynamometers.
Mainly used for easy installed micro miniature tension and pressure
test equipment, crane scale, level indicator and other force
measurement applications.
Applications:
Mainly used for easy installed micro miniature tension and pressure
test equipment, crane scale, level indicator and testing machine,
miniature tension and pressure test equipment, such as lamination
machine, riveting machine, welding machine.
Technical parameters:
Specifications | Technique |
Rated output | 1.5±10%mV/V |
Zero balance | ±2% F.S. |
Non-linearity | 0.5% F.S. |
Hysteresis | 0.5% F.S. |
Repeatability | 0.5% F.S. |
Creep (30min) | 0.5% F.S. |
Temp. effect on output | 0.05% F.S. / 10ºC |
Temp. effect on zero | 0.05% F.S. / 10ºC |
Input impedance | 385±10Ω |
Output impedance | 350±5Ω |
Insulation | ≥2000MΩ / 100VDC |
Recommended excitation | 5~10V |
Maximum excitation | 15V |
Compensated temp. range | - 10~60ºC |
Operation temp. range | - 20~80ºC |
Safe overload | 120% F.S. |
Ultimate overload | 150% F.S. |
Cable size | Ø4*3000 mm |
Protection class | IP67 |
Cable color code | Input: Red(+) Black(-); Output: Green(+) White(-); |

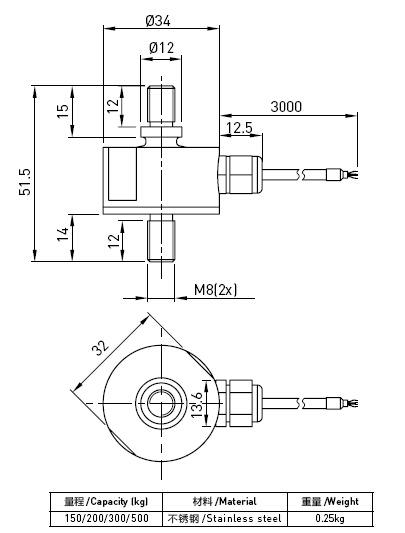

Size and capacity:

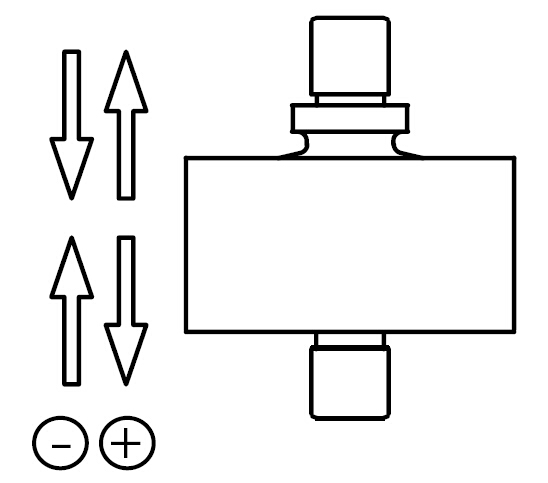

Load direction:
Schematic Wiring Diagram :
