Micro Compression Load Cell Strain Gauge High capacity Load Cell Small Sensor

Features :

• Model:F1814
• Small deflection
• Low profile
• Simple structure, easy to install
• Made of stainless steel or aluminum alloy
• Diametion: 10mm
• IP64
• Miniature compression load cell

Applications:

F1814 is designed for low profile compression service. lts capacities range from 3Kg to 100kg and it comes complete with 1.5m of load cell cable. Low profile. There is a thermoplastic pipe on the cable, it is an adjustable resistance. As the Load cell is very small , we need to mount the adjustable resistance outside the load cell.

Suitable for force measurement in limited spaces. Widely used for industrial measurement and control, R&D and other applications.

Various applications such as consumer electronics assembly, automation industry

Technical parameters:

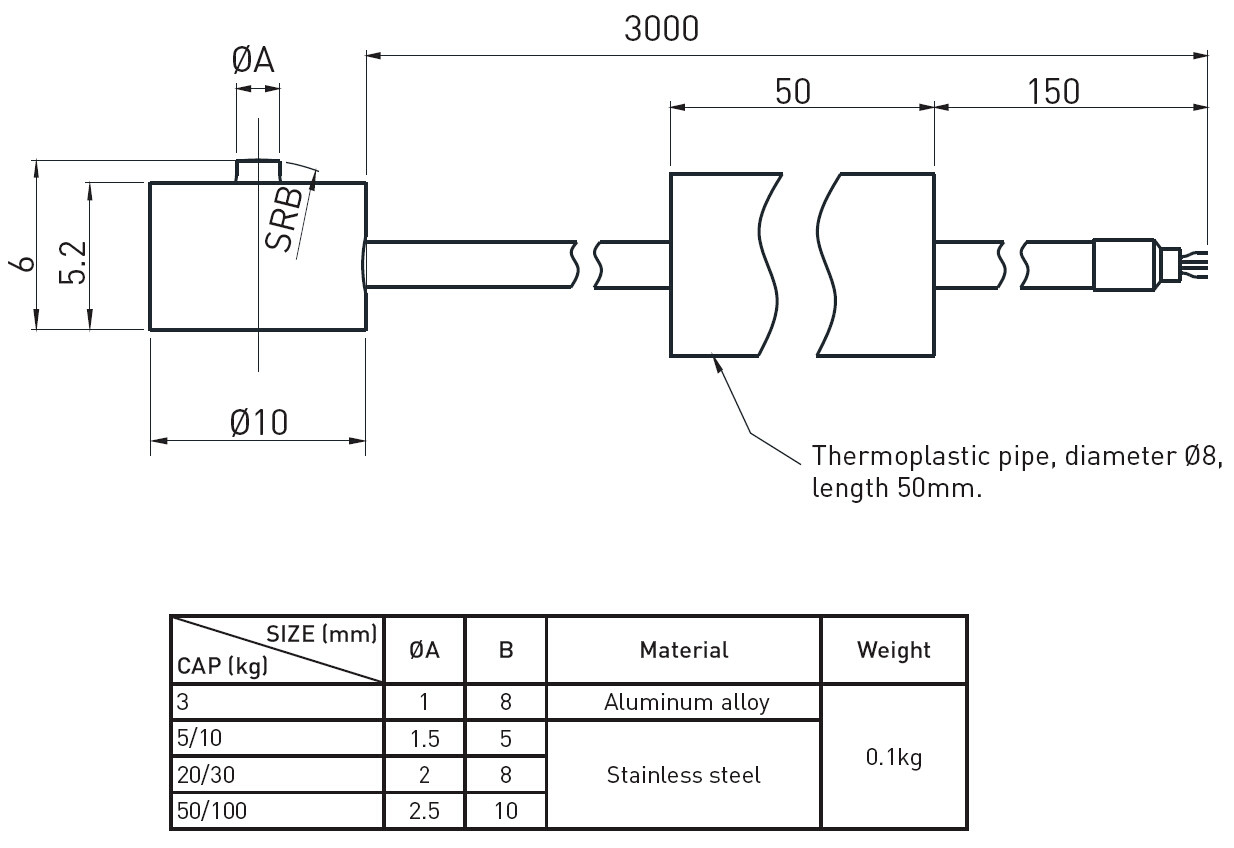

Size and capacity:

Load Direction:

Schematic Wiring Diagram :

Product Details:
