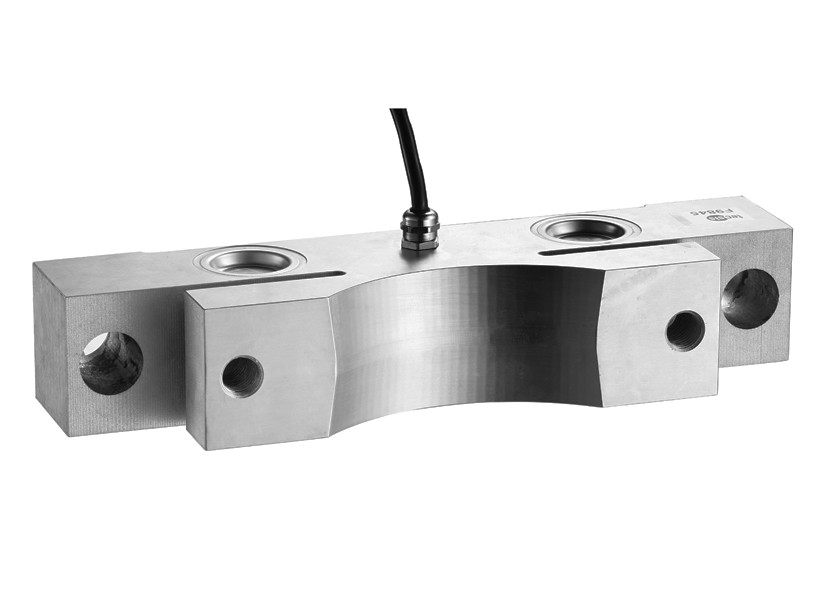

Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity

Features :

• Model:F9845
• Fish back sensor
• Strong shock resistance, long term stability
• Capacity:10t~110t
• Made of alloy steel
• Easy to install and replace non weighing parts

Description:

F9845 Force transducer is available in the capacities 10t~110t.

The protection class is IP67, this makes it easy to used in kinds of harsh envirenments.

It has a high accuracy and easy to install. Its weight is 7.7kg.

It has a good long term stability.

Strong shock resistance,long term stability

Wide range,IP 67 protection

Applications:

Suitable for all kinds of cranes.

Technical parameters:

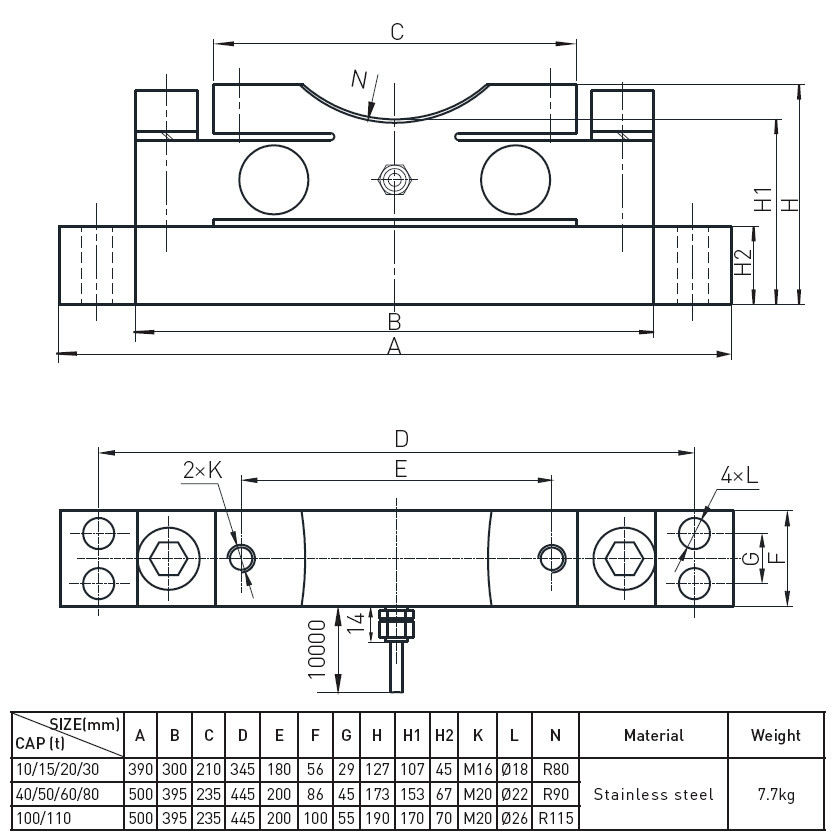

Size and capacity:

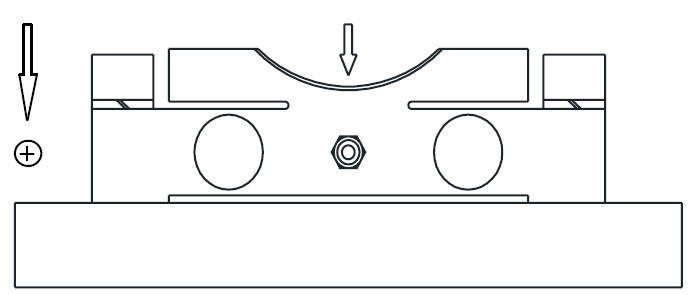

Load Direction:

Schematic Wiring Diagram :

Product Details:
