Low Profile Single Point Scale Load Cell Accuracy , Load Cell Weight Sensor 50kg

Features :

• Model:F4812
• Capacity: 50kg~650kg
• Made of aluminum alloy
• Simple structure, easy to install
• High comprehensive precision, high stability
• IP65 protection
• Delicate structure

Description:

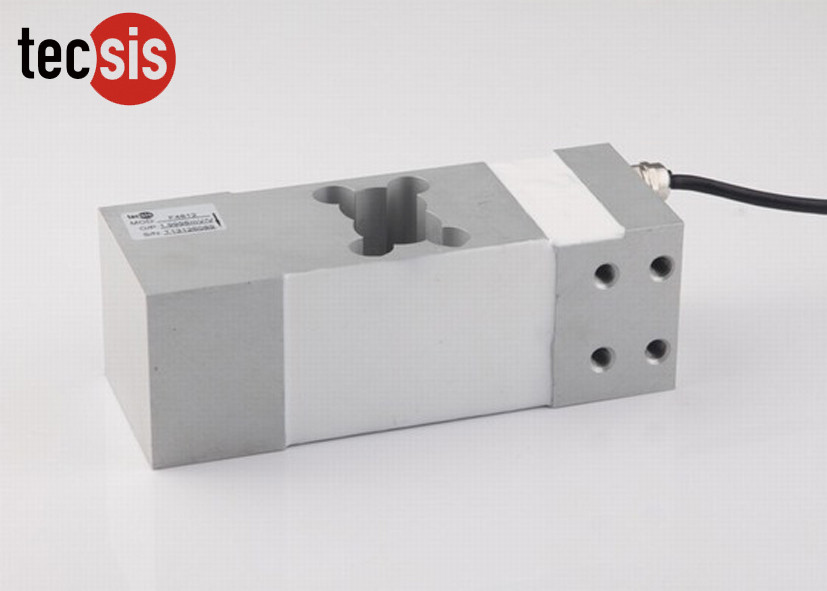

F4812 is a kind of Single Point Load Cell, It is made of aluminum alloy, and its surface must be anodized.

F4812 load cell is available in the capacities 50kg to 650kg, its structure is very compact, there are 4 holes on each sides, it can be stable to measure the force and easy to install,

The protection level reaches to IP65.

It comes with complete 2.0m cable.

Has the function of high stability and high accuracy, F4812 is designed for electronic scales and platform scales where only one load cell can be used and low profile is required. Recommended platform size is 450mm×550mm, the design is most suitable for mass production operations.

F4812can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.

Application:

F4812 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.

Technical parameters:

Size and capacity:

Load Direction:

Schematic Wiring Diagram :

Product Details:
