Custom Scale Single Point Load Cell High Accuracy Weighing Sensor
20kg To 500kg
Features :
- Model:F4818
- Capacity: 20kg~500kg
- Simple structure, easy to install
- High comprehensive precision, high stability
- Made of aluminum alloy
- IP65 protection
- Delicate structure
Description:

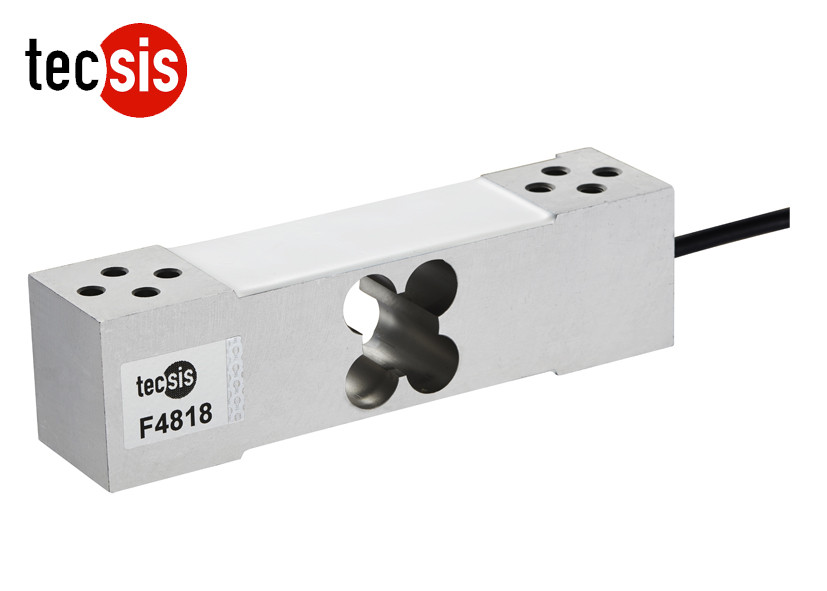

F4818 is a kind of Single Point Load Cell, It is made of aluminum
alloy.
There are 4 holes on both sides, it will be more accurate to
maesure the force and easy to install.
The capacity is 20~500kg and the size is 150*40*35mm.
It comes with complete 1.5m cable.
The protection level reaches to IP65.
Recommended platform size is 450mm×450mm.
F4818 can be used for Low profile platform scales (If choosing the
suitable attachment), Packaging Scales, Retail Scales, Counting
Scales, Electronic Scales, Post Scales, Chemical, Industries of
Foods, Pharmaceuticals and other weighing systems.
Application:
F4818 can be used for Low profile platform scales (If choosing the
suitable attachment), Packaging Scales, Retail Scales, Counting
Scales, Electronic Scales, Post Scales, Chemical, Industries of
Foods, Pharmaceuticals and other weighing systems.
Technical parameters:
Specifications | Technique |
Rated output | 2.0±10%mV/V |
Zero balance | ±2% F.S. |
Non-linearity | 0.02% F.S. |
Hysteresis | 0.02% F.S. |
Repeatability | 0.02% F.S. |
Creep (30min) | 0.02% F.S. |
Temp. effect on output | 0.025% F.S. / 10ºC |
Temp. effect on zero | 0.025% F.S. / 10ºC |
Input impedance | 410±10Ω |
Output impedance | 350±5Ω |
Insulation | ≥2000MΩ/ 100VDC |
Recommended excitation | 10V |
Maximum excitation | 15V |
Compensated temp. range | - 10~40ºC |
Operation temp. range | - 20~60ºC |
Safe overload | 120% F.S. |
Ultimate overload | 200% F.S. |
Cable size | Ø5×1500 mm |
| Platform size | 450×450mm |
Protection class | IP65 |
Cable color code | Input: Red(+) Black(-); Output: Green(+) White(-); |
