    IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge

    Ask Lasest Price
    Brand Name : tecsis
    Model Number : F9844
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 20,000pcs per month
    Delivery Time : Stock product:3~5 working days , No stock:10~35 days
    • Product Details
    • Company Profile

    IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge

    IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge


    Features :

    • Model:F9844
    • Capacity: 200Nm~800Nm
    • Simple structure, easy to install
    • High comprehensive precision, high stability
    • Stainless steel or Alloy steel( optional)
    • Delicate structure
    • Static torque sensor

    Description:


    Static torque sensor with metal foil strain gauge technology and compact structure.

    It is easy to install, and it will be more stable to measure the torque force.


    Application:


    Mainly used for static, non-continuous rotational torque force measurement.


    Technical parameters:


    Specifications

    Technique

    Rated output

    2.0±10%mV/V

    Zero balance

    ±2% F.S.

    Non-linearity

    0.25% F.S.

    Total error

    0.25% F.S.

    Temp. effect on output

    0.2% F.S. / 10ºC

    Temp. effect on zero

    0.2% F.S. / 10ºC

    Input impedance

    400±20Ω

    Output impedance

    350±5Ω

    Recommended excitation

    5~10V

    Maximum excitation

    15V

    Compensated temp. range

    - 10~40ºC

    Operation temp. range

    - 20~80ºC

    Safe overload

    120% F.S.

    Ultimate overload

    150% F.S.

    Cable size

    Ø5×3000mm

    Protection class

    IP65

    Cable color code

    Input: Red(+) Black(-);

    Output: Green(+) White(-);

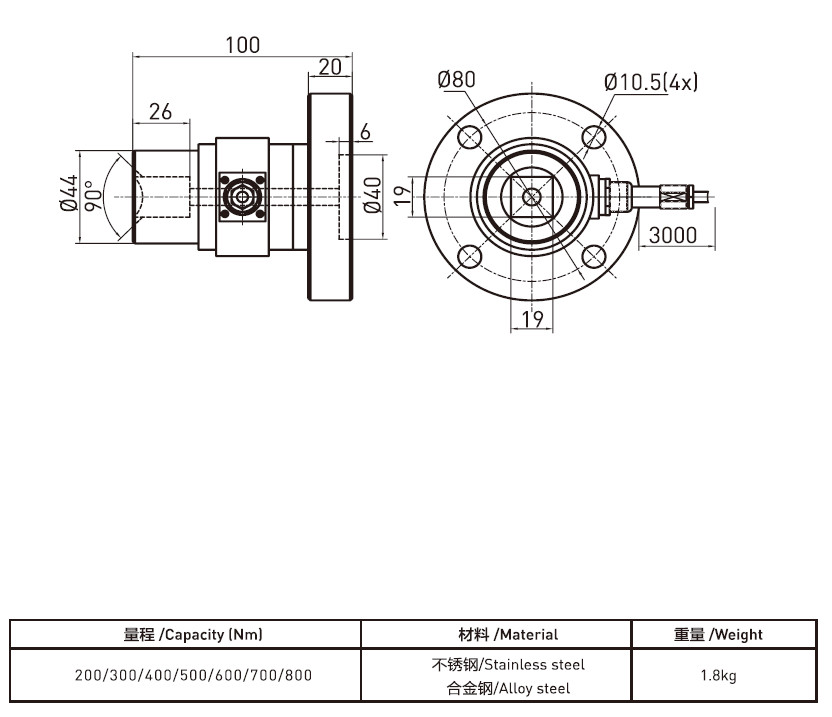

    Size and capacity:

    IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge


    Load Direction:


    IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge


    Schematic Wiring Diagram :


    IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge


    Product Details:

    IP65 Force Torque Sensor With High Precision Load Cell Strain GaugeIP65 Force Torque Sensor With High Precision Load Cell Strain GaugeIP65 Force Torque Sensor With High Precision Load Cell Strain Gauge
