Small Tension Compression Load Cell , Stainless Steel Load Sensor
50kg 100kg
Features :
- Model:F2812
- Tension and compression load cell
- High comprehensive precision, high stability
- Simple structure, both sides threads, easy to install
- Small size, easy to use
- Made of stainless steel
- Capacity:5kg~100kg
- Diameter:25.4mm
Description:
F2812 Force transducer is available in the capacities 5kg to 100kg.
Its structure is very delicate, the diameter is 25.4mm, there are
M5/M6 threads on both sides of the load cell, this makes it easy to integrated into mechanical shaft.
F2812 Force transducer can be used single, it can be used for the
small space or limited environment (if the output is rationalized).
single load cell can be matched with weighing indicator, converting
what you want to.
As a force transducer, it is suitable for a wide range of
applications including testing or weighing systems, for example,
the weighing systems of material testing machines and Dynamometers.
Applications:
Mainly used for key and elasticity test of computers, level
indicator, easy installed miniature tension and pressure test
equipment (like manipulator),
other force measurement application.
Technical parameters:
Specifications | Technique |
Rated output | 2.0±10%mV/V |
Zero balance | ±2% F.S. |
Non-linearity | 0.5% F.S. |
Hysteresis | 0.25% F.S. |
Repeatability | 0.25% F.S. |
Creep (30min) | 0.5% F.S. |
Temp. effect on output | 0.05% F.S. / 10ºC |
Temp. effect on zero | 0.05% F.S. / 10ºC |
Input impedance | 700±30Ω |
Output impedance | 700±5Ω |
Insulation | ≥5000MΩ / 100VDC |
Recommended excitation | 10V |
Maximum excitation | 15V |
Compensated temp. range | - 10~60ºC |
Operation temp. range | - 20~80ºC |
Safe overload | 120% F.S. |
Ultimate overload | 200% F.S. |
Cable size | Ø3*3000 mm |
Protection class | IP65 |
Cable color code | Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:

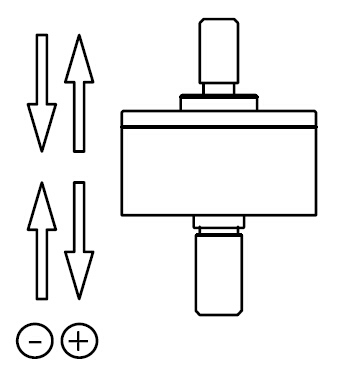

Load direction:
Schematic Wiring Diagram :
Product details;
