Multi Axis Testing Tension And Compression Load Cell Weighing
System
Features :
- Model:F2814
- Tension and compression load cell
- High comprehensive precision, high stability
- Simple structure, both sides threads, easy to install
- Large capacity
- Made of stainless steel
- Capacity:1KN~20KN
- Diameter:51mm
Description:

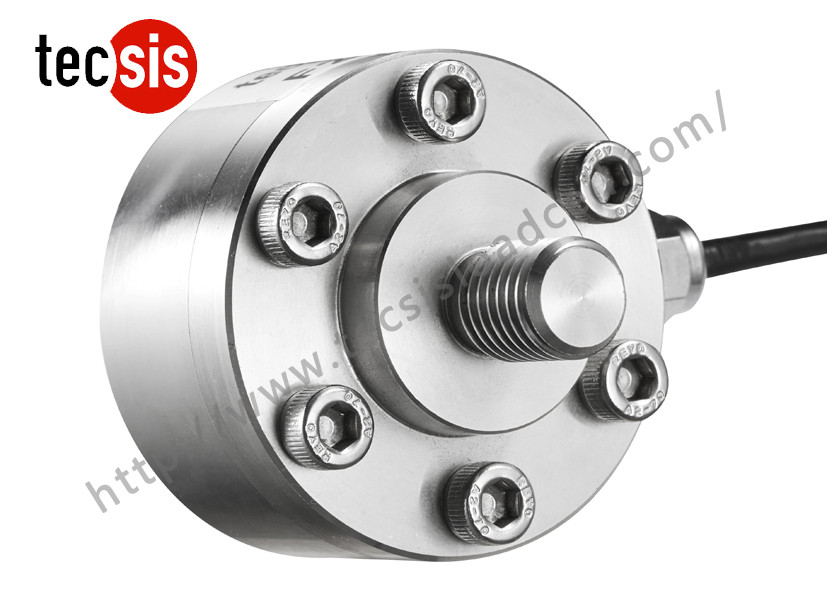

F2814 Force transducer is available in the capacities 1KN to 20KN.
With strain gauge technology.
There are M12 threads on both sides of the load cell, this makes it
easy to integrated into mechanical shaft.
F2814 Force transducer can be used single, there are 6 holes on one
side of the load cell, it can mount the load cell easily.
It is made of stainless steel, this makes it has good stability.
The diameter is 51mm and the height is 70mm, it is suitable for big
capacity appliactions.
It comes with complete 3m cable.
Mainly used for pull and push dynamometer, hopper scale and
industrial measuring systems.
Applications:
Mainly used for pull and push dynamometer, hopper scale and testing
machine, miniature tension and pressure test equipment, such as
lamination machine, riveting machine, welding machine
Technical parameters:
Specifications | Technique |
Rated output | 1.5±10%mV/V |
Zero balance | ±2% F.S. |
Non-linearity | ≤0.5% F.S. |
Hysteresis | 0.1% F.S. |
Repeatability | 0.1% F.S. |
Creep (30min) | 0.5% F.S. |
Temp. effect on output | 0.05% F.S. / 10ºC |
Temp. effect on zero | 0.05% F.S. / 10ºC |
Input impedance | 385±10Ω |
Output impedance | 350±5Ω |
Insulation | ≥5000MΩ / 50VDC |
Recommended excitation | 10V |
Maximum excitation | 15V |
Compensated temp. range | - 10~60ºC |
Operation temp. range | - 20~80ºC |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Cable size | Ø5*3000 mm |
Protection class | IP66 |
Cable color code | Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Load direction:
Schematic Wiring Diagram :
Product details:
