Pancake Truck Scale Tension Compression Load Cell of Alloy Steel
Features :
- Model:F2822
- Tension and compression load cell
- High comprehensive precision, high stability
- Made of alloy steel
- Capacity:0.5t~50t
- Configuration: Pancake type
Description:
F2822 Pancake Load Cell (Tension Base) is specially designed for
high capacity applications in both tension and compression.
The load cell includes eight bolt-down holes along its outer
diameter for ease of mounting.
The cell is available in alloy steel and comes in various optional
versions such as amplified version readily available.
The standard F2822 Pancake Load Cell offers easy customization and
modification as per need and most models are in our inventory
making them available for quick delivery.
The Pancake Load Cell uses metal foil strain gauge technology and
is manufactured in Shenzhen China.
The protection class is IP67, waterproof, it is suitable for harsh
environment.
Mainly used for platform scales, truck scales, floor scales and
industrial weighing systems.
Applications:
Mainly used for platform scales, truck scales, floor scales and
industrial weighing systems.
Technical parameters:
Specifications | Technique |
Rated output | 2.0±1%mV/V |
Zero balance | ±1% F.S. |
Non-linearity | 0.05% F.S. |
Hysteresis | 0.03% F.S. |
Repeatability | 0.03% F.S. |
Creep (30min) | 0.05% F.S. |
Temp. effect on output | 0.03% F.S. / 10ºC |
Temp. effect on zero | 0.03% F.S. / 10ºC |
Input impedance | 750±10Ω |
Output impedance | 700±5Ω |
Insulation | ≥5000MΩ / 50VDC |
Recommended excitation | 10V |
Maximum excitation | 15V |
Compensated temp. range | - 10~60ºC |
Operation temp. range | - 20~80ºC |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Cable size | Ø5×5000 mm |
Protection class | IP67 |
Cable color code | Input: Red(+) Black(-); Output: Green(+) White(-); |

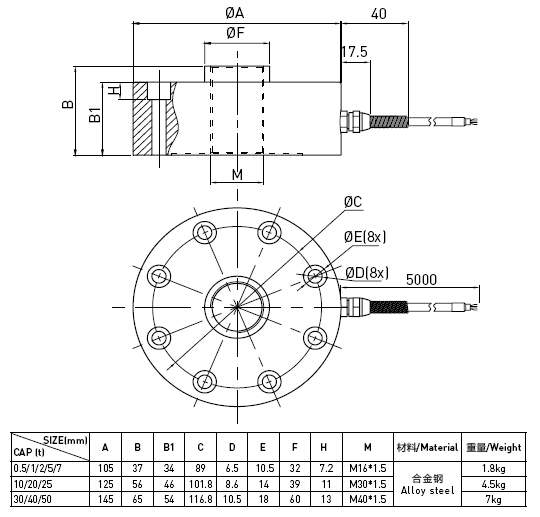

Size and capacity:
Load direction:
Schematic Wiring Diagram :
Application show:
