    Sensortronics High Capacity Scale Load Cell Waterproof Weight Sensors

    Ask Lasest Price
    Brand Name : tecsis
    Model Number : F2805
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 20,000pcs per month
    Delivery Time : Stock product:3~5 working days , No stock:10~35 days
    • Product Details
    • Company Profile

    Sensortronics High Capacity Scale Load Cell Waterproof Weight Sensors


    Sensortronics High Capacity Scale Load Cell Waterproof Weight Sensors


    Features :

    • Model:F2805
    • Tension and compression load cell
    • High comprehensive precision, high stability
    • Compact structure, easy to install
    • Made of alloy steel or stainless steel
    • Zero balance: ±2% F.S.
    • Capacity: 0.1~20t
    • Scale load cell

    Descriptions:


    F2805 is available in the capacities 0.1t to 20t.


    Tension and compression load cell, S-type shape made of steel.


    Alloy steel material makes it suitable for all kinds of hazardous environments.


    The mounting holes are customization.


    High accuracy.


    It comes complete 3m cable.


    The protection class is IP67, waterproof.


    Used in hanging scales, hopper scales, pull and pressure testing equipment, packing scales, catchweigher, other force measurement use.


    S-type designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.


    Applications:


    S-type designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.


    Technical parameters:


    Specifications

    Technique

    Rated output

    2.0±5%mV/V

    Zero balance

    ±2% F.S.

    Non-linearity

    0.03% F.S.

    Hysteresis

    0.03% F.S.

    Repeatability

    0.02% F.S.

    Creep (30min)

    0.03% F.S.

    Temp. effect on output

    0.03% F.S. / 10ºC

    Temp. effect on zero

    0.03% F.S. / 10ºC

    Input impedance

    385±10Ω

    Output impedance

    350±5Ω

    Insulation

    ≥5000MΩ/ 100VDC

    Recommended excitation

    10V

    Maximum excitation

    15V

    Compensated temp. range

    - 10~60ºC

    Operation temp. range

    - 20~80ºC

    Safe overload

    150% F.S.

    Ultimate overload

    200% F.S.

    Cable size

    Ø5*3000 mm

    Protection class

    IP67

    Cable color code

    Input: Red(+) Black(-);

    Output: Green(+) White(-);



    Size and capacity:


    Sensortronics High Capacity Scale Load Cell Waterproof Weight Sensors

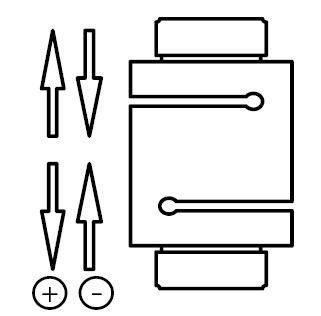

    Load Direction:


    Sensortronics High Capacity Scale Load Cell Waterproof Weight Sensors


    Schematic Wiring Diagram :


    Sensortronics High Capacity Scale Load Cell Waterproof Weight Sensors


    Product Details:

    Sensortronics High Capacity Scale Load Cell Waterproof Weight Sensors
