    Precision Single Point Strain Gage Load Cell Scale Sensor High Stability

    Ask Lasest Price
    Brand Name : tecsis
    Model Number : F4818
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 20,000pcs per month
    Delivery Time : Stock product:3~5 working days , No stock:10~35 days
    • Product Details
    • Company Profile

    Precision Single Point Strain Gage Load Cell Scale Sensor High Stability


    Precision Single Point Strain Gage Load Cell Scale Sensor High Stability


    Features :

    • Model:F4818
    • Capacity: 20kg~500kg
    • Simple structure, easy to install
    • High comprehensive precision, high stability
    • Made of aluminum alloy
    • IP65 protection
    • Delicate structure

    Description:

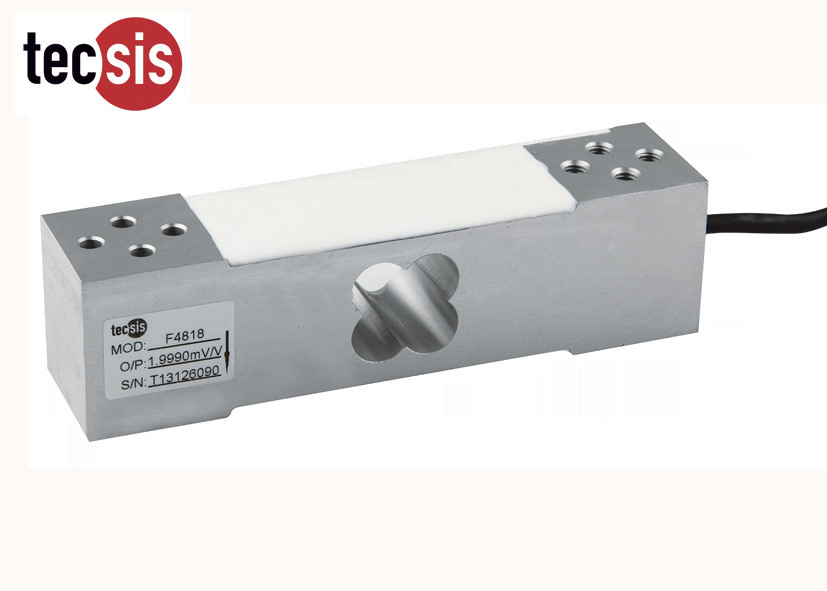

    F4818 is a kind of Single Point Load Cell, It is made of aluminum alloy.


    There are 4 holes on both sides, it will be more accurate to maesure the force and easy to install.


    The capacity is 20~500kg and the size is 150*40*35mm.


    It comes with complete 1.5m cable.


    The protection level reaches to IP65.


    Recommended platform size is 450mm×450mm.


    F4818 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.


    Application:


    F4818 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.


    Technical parameters:


    Specifications

    Technique

    Rated output

    2.0±10%mV/V

    Zero balance

    ±2% F.S.

    Non-linearity

    0.02% F.S.

    Hysteresis

    0.02% F.S.

    Repeatability

    0.02% F.S.

    Creep (30min)

    0.02% F.S.

    Temp. effect on output

    0.025% F.S. / 10ºC

    Temp. effect on zero

    0.025% F.S. / 10ºC

    Input impedance

    410±10Ω

    Output impedance

    350±5Ω

    Insulation

    ≥2000MΩ/ 100VDC

    Recommended excitation

    10V

    Maximum excitation

    15V

    Compensated temp. range

    - 10~40ºC

    Operation temp. range

    - 20~60ºC

    Safe overload

    120% F.S.

    Ultimate overload

    200% F.S.

    Cable size

    Ø5×1500 mm

    Platform size

    450×450mm

    Protection class

    IP65

    Cable color code

    Input: Red(+) Black(-);

    Output: Green(+) White(-);



    Size and capacity:


    Precision Single Point Strain Gage Load Cell Scale Sensor High Stability


    Load Direction:


    Precision Single Point Strain Gage Load Cell Scale Sensor High Stability


    Schematic Wiring Diagram :


    Precision Single Point Strain Gage Load Cell Scale Sensor High Stability


    Product Details:Precision Single Point Strain Gage Load Cell Scale Sensor High Stability
